What Is a Die in Metal Stamping
A die in metal stamping is a precision tool used to cut, form, or shape sheet metal into specific geometries during high-volume production.
In a typical stamping process, the die works with a punch inside a press to apply controlled force. This transforms flat metal into finished components with repeatable dimensions.
A well-engineered stamping die defines part geometry, tolerance, and production stability. It is the core element that enables PRECISION, CONSISTENCY, and EFFICIENCY in modern manufacturing.

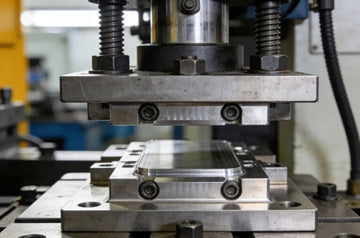

How a Stamping Die Works
A die in metal stamping operates by positioning sheet metal between a punch and a die cavity.
During each press cycle:
- The punch applies force to the material
- The material flows or fractures based on die geometry
- The required shape is formed or cut
Cutting clearance plays a critical role. It is typically around 10 percent of material thickness and directly affects:
- Edge quality
- Burr formation
- Tool wear
Controlled clearance and alignment ensure stable part quality over long production runs.
What a Stamping Die Does
A stamping die is designed to achieve three core production outcomes:
- PRECISION – Maintains tight dimensional tolerances
- CONSISTENCY – Produces identical parts across high volumes
- EFFICIENCY – Supports high-speed automated manufacturing
For example, in connector manufacturing, stable die performance ensures accurate pin positioning and reliable assembly.
Without proper die design, production may suffer from burrs, dimensional variation, and frequent downtime. A well-engineered die eliminates these issues by controlling material flow and tool interaction.
Types of Stamping Dies
Different production needs require different die structures.
Progressive Die
- Performs multiple operations on a continuous strip
- Final part is separated at the last station
- Suitable for high-volume precision components
Transfer Die
- Moves parts between stations using transfer systems
- Used for larger or more complex geometries
Line Die
- Each operation is performed separately
- Suitable for low-volume or large parts
Multi-slide / Four-slide Die
- Forms parts from multiple directions simultaneously
- Suitable for complex bending applications
Among these, progressive die stamping is widely used in automotive and electronic components due to its stable output and production speed.
Stamping Die Components
A stamping die system is a combination of multiple engineered components.
Key elements include:
- Die shoes – Provide structural support
- Guide systems – Maintain alignment during operation
- Punches and inserts – Perform cutting and forming
- Stripper plates – Control material and part release
- Springs or gas cylinders – Provide controlled force
- Scrap systems – Remove waste material efficiently
- Fastening elements – Ensure precise positioning
Modern dies may also include sensors to detect misfeeds or tool breakage, reducing production risk.
Stamping Operations a Die Can Perform
A die in metal stamping supports multiple manufacturing operations.
Common processes include:
- Blanking – Cutting and retaining the part
- Piercing – Creating holes while removing scrap
- Trimming – Removing excess material
- Notching – Cutting along strip edges
- Lancing – Cutting without full separation
- Shearing – Straight-line cutting
In production, these operations are often combined.
For example, a connector housing can be produced through notching, piercing, forming, and cutoff within a single progressive die, improving production efficiency and consistency.
Die vs Tooling – Key Differences
In stamping terminology:
- Tooling refers to the entire manufacturing system
- Die is the specific forming and cutting structure
- Punch applies force to shape the material
The interaction between punch and die determines:
- Edge condition
- Burr size
- Tool life
Accurate alignment and clearance control are essential for maintaining RELIABILITY in production.
How Stamping Dies Control Precision and Tolerance
A die in metal stamping directly controls dimensional accuracy.
High-quality dies can achieve:
- Up to ±0.005 mm precision in advanced applications
- Stable repeatability over millions of cycles
This level of performance depends on process control, including:
- Precision machining using equipment such as AMADA and Trumpf systems
- Controlled heat treatment to maintain tool hardness and stability
- In-process inspection using 2.5D measurement systems
- Regular tool maintenance to manage wear and extend die life
Manufacturers with integrated die design and stamping production can better control these variables. tqstamping applies this approach by combining tooling development, precision machining, and inspection into a single workflow.
Where Stamping Dies Are Used
Stamping dies are widely used across industrial applications.
Typical use cases include:
- Automotive – structural brackets and reinforcement parts
- Electronics – connector housings and shielding components
- Appliances – internal frames and panels
- New energy – battery components and precision hardware
These applications require high-volume production with strict tolerance control.
FAQ
What is the difference between a die and a punch
A die forms the shape of the part, while the punch applies force to push material into or through the die. Their alignment and clearance determine edge quality, burr formation, and tool life.
What is a progressive die
A progressive die performs multiple operations in sequence on a continuous strip. The part remains attached until the final stage, making it ideal for high-volume automated production.
How precise can a stamping die be
A high-quality die in metal stamping can achieve tolerances up to ±0.005 mm. Actual precision depends on tooling design, material behavior, and process control.
Why is cutting clearance important
Cutting clearance affects edge finish, tool wear, and required force. Incorrect clearance can lead to excessive burrs or premature tool failure.
What is the difference between blanking and piercing
Blanking retains the cut piece as the final part. Piercing removes material to create holes, and the removed portion is scrap.
How do you choose the right stamping die type
The selection depends on part complexity, production volume, and cost targets. Progressive dies are suitable for high-volume precision parts, while transfer dies are used for larger or more complex components.
How to Choose a Stamping Partner
The performance of a stamping die depends on both design capability and manufacturing execution.
Key factors to evaluate include:
- Integrated die design and production capability
- Precision equipment and inspection systems
- Quality management aligned with ISO and IATF standards
- Ability to control lead time and maintain production stability
Poor die design often leads to inconsistent dimensions, excessive scrap, and unplanned downtime.
Manufacturers with in-house tooling and process control can reduce these risks. tqstamping supports this approach by combining die development, precision stamping, and quality inspection to ensure stable and scalable production for complex components.
