Compound vs Progressive vs Transfer Die - Key Differences and How to Choose

Why Choosing the Right Stamping Die Impacts Cost and Quality

Metal stamping defines how efficiently sheet metal is converted into functional parts. The choice between different stamping die types directly affects cost structure, dimensional accuracy, and production stability.

A mismatched die strategy leads to unstable tolerance control, excessive scrap, and higher unit cost. A well-matched process improves CONSISTENCY, reduces waste, and supports scalable manufacturing.

This guide explains compound die vs progressive die vs transfer die from an engineering and production perspective, with real manufacturing considerations.

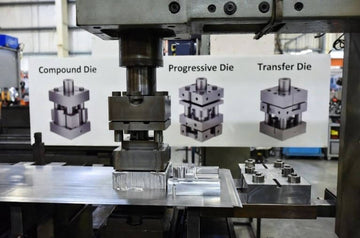

Overview of Compound, Progressive, and Transfer Dies

Three primary die systems dominate modern precision metal stamping:

• Compound Die - single stroke, multi-operation

• Progressive Die - continuous strip-based processing

• Transfer Die - separated part with staged transfer

Each system controls material flow differently, which directly affects forming behavior, accuracy, and production efficiency.

Compound Die - Best for Flat Parts and Single-Operation Precision

How Compound Die Stamping Works

In compound die stamping, multiple cutting operations occur in one press stroke. Blanking and piercing are completed simultaneously within a single station.

Because the part is not repositioned, cumulative alignment error is minimized.

Engineering Considerations

• Die clearance directly impacts edge quality and burr height

• Typical clearance ranges from 5–10% of material thickness, depending on material hardness

• Tight clearance improves edge finish but increases tool wear

This trade-off must be controlled to maintain RELIABILITY over long runs.

Key Advantages

• High PRECISION from single-hit alignment

• Lower tooling complexity and cost

• Reduced positional variation between features

Limitations

• Limited to flat or near-flat geometries

• No support for multi-stage forming

• Not suitable for deep drawing or complex bending

Industrial Applications

• EMI shielding plates with strict flatness requirements

• Washer and gasket production with tight concentricity

• Simple connector reinforcement plates

Compound dies are often selected when tolerance alignment is critical but geometry remains simple.

Progressive Die - Ideal for High-Volume and Consistent Production

How Progressive Die Stamping Works

In a progressive die stamping process, a metal strip feeds through multiple stations. Each station performs one operation while the strip remains indexed.

The part is only separated at the final stage, ensuring consistent positioning throughout production.

Engineering Considerations

• Strip layout and nesting define material utilization and scrap rate

• Optimized layouts can reduce scrap to 10–20% depending on geometry

• Poor layout increases material cost significantly over large runs

• Feed accuracy typically controlled within ±0.02 mm

• Indexing stability is critical for maintaining feature alignment

• Typical production speed reaches 300–800 strokes per minute, depending on part complexity

This is why progressive systems deliver strong CONSISTENCY in mass production.

Key Advantages

• High production EFFICIENCY and throughput

• Low cost per part at scale

• Stable dimensional repeatability

• Reduced manual intervention

Limitations

• High tooling investment and longer development time

• Limited deep drawing capability

• Design changes require tooling rework

Industrial Applications

• Electronic connector shells such as Type-C, HDMI, and DP housings

• Automotive terminals and clips

• Precision small metal components

For example, thin stainless steel connector shells require strict springback control. Progressive dies manage this through staged forming and controlled deformation.

At tqstamping, progressive tooling is optimized for connector components. Precision equipment and inline inspection ensure stable tolerances within ±0.01 mm across high-volume production.

Transfer Die - Designed for Complex and Deep Drawn Parts

How Transfer Die Stamping Works

In transfer die stamping, the part is separated early and transferred between stations using mechanical grippers.

Each station performs a dedicated forming step, allowing greater flexibility in geometry.

Engineering Considerations

• Transfer timing and gripper accuracy must be synchronized with press motion

• Misalignment can lead to deformation or surface defects

• Positioning accuracy typically controlled within ±0.05 mm

• Critical for maintaining part geometry across multiple forming stages

• Suitable for deep drawing operations, where material flow must be controlled across several steps

Key Advantages

• Supports complex multi-directional forming

• Suitable for large components

• Enables deep drawing and structural shaping

Limitations

• Higher setup complexity and cost

• Slower cycle time compared to progressive systems

• Requires precise automation control

Industrial Applications

• EV battery brackets with multi-stage forming

• Deep drawn enclosures for power systems

• Automotive structural components

In EV applications, controlling springback and material thinning is critical. Transfer dies allow staged forming to reduce stress concentration.

This level of process control requires precision tooling and inspection systems, which are integrated into tqstamping’s production workflow.

Compound vs Progressive vs Transfer Die - Key Differences Explained

Decision-Oriented Comparis

How to Choose the Right Die Based on Part Design and Volume

1. Part Geometry

• Flat and simple → Compound Die

• Multi-feature small parts → Progressive Die

• Complex or deep drawn parts → Transfer Die

2. Production Volume

• Below 10,000 units → Compound

• Above 100,000 units → Progressive

• Medium volume with complexity → Transfer

3. Cost Strategy

• Minimize tooling cost → Compound

• Minimize unit cost → Progressive

• Enable complex functionality → Transfer

4. Production Stability

• Single-step precision → Compound

• Continuous indexed production → Progressive

• Multi-stage forming control → Transfer

At tqstamping, engineers evaluate these factors early in the design phase. This reduces tooling iteration and shortens time to production.

What Else Affects Stamping Quality Besides Die Type

Die type alone does not guarantee performance. Manufacturing outcomes depend on:

• Tooling design accuracy

• Material selection and thickness variation

• Press tonnage and stability

• Inline inspection systems

For example, achieving ±0.01 mm tolerance requires controlled die clearance, stable press motion, and high-precision measurement systems.

With integrated capabilities in stamping, tooling, and inspection, tqstamping ensures full-process traceability and quality control.

FAQ

What tolerance can progressive die stamping achieve

Progressive die stamping typically achieves tolerances of ±0.01–0.02 mm under stable conditions. Accuracy depends on tooling design, material thickness, and press control. Proper strip alignment and consistent feed indexing are critical to maintaining dimensional repeatability in high-volume production.

What is the typical tooling lead time for stamping dies

Tooling lead time depends on die complexity. Simple compound dies usually take 2–4 weeks, while progressive or transfer dies require 6–10 weeks. Design validation, machining precision, and trial runs all influence the final delivery timeline.

Which process is best for connector shell production

Progressive die stamping is widely used for connector shells such as Type-C or HDMI housings. It supports high-volume production with stable tolerances, controlled forming, and consistent part quality, which are essential for electronic performance and assembly reliability.

What materials can be used in stamping processes

Stamping commonly uses stainless steel, copper, aluminum, and brass. Material selection affects formability, springback, and tool wear. Thin-wall materials require precise control to avoid deformation, especially in high-speed progressive stamping environments.

What is the minimum order quantity for stamping production

MOQ depends on tooling investment and production method. Progressive dies require higher volumes to offset tooling cost, while compound dies are suitable for lower quantities. Production planning should balance tooling cost and unit price efficiency.

How does stamping control springback in formed parts

Springback is controlled through tooling design, forming sequence, and material selection. Progressive and transfer dies often use staged forming and compensation angles to reduce deformation, ensuring final dimensions remain within required tolerances.

Conclusion - Selecting the Right Die for Stable Production

Each die type addresses a different manufacturing need:

• Compound Die ensures precision for simple flat parts

• Progressive Die enables high-speed, large-scale production

• Transfer Die supports complex and deep drawn components

The right choice improves EFFICIENCY, reduces cost, and stabilizes production quality.

With 17 years of experience and certified manufacturing systems, tqstamping supports OEM projects from design to mass production. By aligning die strategy with real production conditions, manufacturers can achieve long-term RELIABILITY and consistent results.
