Springback is one of the most common dimensional challenges in metal bending and sheet metal forming operations. It occurs when a formed component partially recovers after the bending force is removed, causing the final geometry to differ from the intended tooling shape. Even small amounts of elastic recovery can affect bend angles, part dimensions, and assembly performance.
For OEM manufacturers producing precision stamped parts, controlling springback is essential for maintaining dimensional consistency, reducing secondary operations, and achieving stable high-volume production. Understanding the factors that drive springback allows engineers to improve tooling design, optimize forming processes, and achieve more reliable manufacturing outcomes.

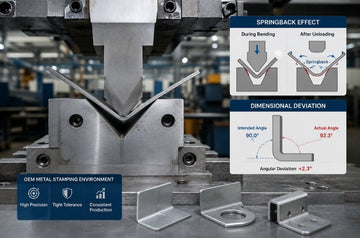

What Is Springback in Metal Bending?
During a bending operation, metal experiences both plastic deformation and elastic deformation.
Plastic deformation permanently changes the shape of the material, while elastic deformation stores internal energy within the formed section. When the external forming force is removed, part of the elastic strain is released, causing the component to move slightly away from the shape created by the punch and die.
This recovery behavior is known as springback. Although it cannot be completely eliminated, it can be predicted, controlled, and compensated for through proper engineering and manufacturing practices.
Why Does Elastic Recovery Occur After Bending?
The root cause of springback lies in the stress distribution that develops through the thickness of the material during forming.
As metal is bent, the outer surface is stretched and subjected to tensile stress, while the inner surface is compressed. Between these two regions is the neutral axis, where deformation remains relatively low.
Not all deformation becomes permanent. A portion remains elastic throughout the forming cycle. Once the forming load is removed, the stored elastic energy attempts to restore the material to its original shape, creating a deviation between the tooling geometry and the final part geometry.
The greater the amount of stored elastic strain, the greater the resulting springback.
How Does Springback Affect Part Geometry?
Elastic recovery primarily affects bend angle and bend radius.
Bend Angle Changes
The most common effect is angular variation.
A component formed to a specific angle inside the die may open slightly after unloading. For example, a bend produced at 90 degrees inside the tooling may relax to 92 degrees or 93 degrees depending on material properties and forming conditions.
For precision assemblies, even a small angular variation can create fit-up problems and reduce product quality.
Bend Radius Changes
Springback also changes the bend radius.
As the material relaxes, the internal bend radius often becomes larger than the radius formed inside the tooling. This change may affect critical dimensions and influence how the part interfaces with mating components.
Dimensional Consistency Challenges
In precision manufacturing, angle variation and radius variation can accumulate across multiple forming features.
The result may include:
-
Assembly interference
-
Misalignment of components
-
Reduced repeatability
-
Increased inspection failures
-
Additional rework requirements
These challenges become increasingly important as production volumes increase.
Key Factors That Influence Springback
Several engineering variables influence the amount of elastic recovery that occurs during metal forming.
Material Properties
Material behavior has a major impact on springback.
Higher yield strength materials resist permanent deformation and retain more elastic energy during bending. As a result, they generally produce greater recovery after unloading.
Materials with higher elastic modulus values typically exhibit less springback because elastic strain represents a smaller portion of the overall deformation.
Common examples include:
-
Stainless steel often produces greater springback than low-carbon steel
-
High-strength steel generally requires more compensation than conventional steel grades
-
Aluminum alloys can exhibit noticeable elastic recovery depending on temper condition
-
Copper and brass alloys typically show lower recovery levels in comparable applications
Material consistency is equally important because variations within a coil can affect forming accuracy throughout a production run.
Bend Radius and Material Thickness
The ratio between bend radius and material thickness strongly influences springback behavior.
When the bend radius becomes large relative to material thickness, a greater percentage of deformation remains elastic. This increases recovery after unloading.
Larger bend radii generally create more springback than tighter radii.
Material thickness also plays an important role. Thicker materials typically exhibit lower angular recovery because a larger volume of material undergoes permanent deformation during forming.
Bend Angle
Bend angle affects the size of the deformation zone.
As bend angles increase, the length of material subjected to forming stresses also increases. This can result in greater accumulated elastic recovery and larger dimensional deviations after unloading.
Complex formed components may therefore behave differently than simple single-bend geometries.
Grain Direction
Sheet metal possesses a rolling direction created during material production.
The orientation of the bend relative to the grain direction influences formability, cracking resistance, and recovery behavior.
Bending across the grain often provides more consistent forming results than bending parallel to the grain. This consideration becomes particularly important when working with stainless steel, high-strength steel, and other materials with limited ductility.
Forming Method
The selected bending process directly affects springback levels.
Air bending generally produces the greatest recovery because the material experiences less plastic deformation.
Bottoming forces the material into closer contact with the die cavity and reduces elastic recovery.
Coining applies significantly higher pressure, producing extensive plastic deformation and minimizing springback.
The appropriate method depends on production requirements, tooling investment, and dimensional tolerance targets.
Part Geometry
Part geometry can significantly influence forming stability.
Simple V-shaped bends typically experience more recovery than U-shaped components because U-shaped sections provide additional geometric restraint.
Features such as formed ribs, embossments, and reinforcing structures can increase stiffness and help maintain dimensional accuracy after forming.
Why Springback Matters in Precision Metal Stamping
In high-volume manufacturing, springback is not simply a bending issue. It directly affects quality, productivity, and production costs.
Tolerance Control
Precision stamped components often require tight dimensional tolerances.
Uncontrolled recovery can push critical dimensions outside specification limits and reduce process capability.
Assembly Accuracy
Many OEM components must fit precisely with mating parts during assembly.
A small angular deviation in a connector terminal may affect insertion force. A mounting bracket with an incorrect bend angle may create alignment issues during installation. An electronic housing with inconsistent geometry may require manual adjustment before assembly.
Production Repeatability
Mass production depends on repeatable results.
If recovery behavior varies from coil to coil or batch to batch, maintaining consistent quality becomes increasingly difficult.
Process stability is especially important in progressive die operations where multiple forming stages work together to achieve final part geometry.
Secondary Processing Costs
Poor control of springback often leads to additional correction operations, increased inspection requirements, and higher scrap rates.
Reducing dimensional variation helps improve production efficiency and lowers overall manufacturing costs.
How Manufacturers Reduce Springback
Although springback cannot be completely eliminated, manufacturers use several proven strategies to minimize its impact.
Optimize Material Selection
Selecting materials with appropriate strength and forming characteristics can reduce elastic recovery while improving forming consistency.
Material certifications and incoming quality verification help maintain stable behavior throughout production.
Reduce Relative Bend Radius
Smaller bend radii increase plastic deformation and reduce recovery effects.
However, radius selection must balance springback reduction against cracking risks and material limitations.
Add Reinforcing Features
Formed ribs and stiffening features increase part rigidity.
Many automotive brackets, electronic housings, and industrial hardware components use reinforcing features to improve dimensional stability after bending.
Use Bottoming or Coining
Bottoming and coining are effective methods for reducing springback when tight angle tolerances are required.
Although these processes require higher forming forces, they can significantly improve dimensional consistency.
Apply Stretch Bending
Stretch bending combines bending with tensile loading.
The applied tension alters stress distribution within the material and reduces elastic recovery after unloading.
This approach is commonly used in aerospace, transportation, and structural applications where geometric accuracy is critical.
Heat Treatment Before Forming
Certain cold-worked materials exhibit elevated yield strength and increased recovery.
Annealing prior to forming can improve formability and reduce springback in selected applications.
How Tooling Design Compensates for Springback
Tooling design is one of the most effective methods for controlling springback in OEM production.
Overbending Compensation
The most common solution is intentional overbending.
The tooling bends the material beyond the desired final angle, allowing elastic recovery to bring the component back to specification after unloading.
Die Geometry Compensation
Toolmakers frequently adjust punch angles, die angles, and forming radii based on expected recovery behavior.
These compensations are validated through sampling, measurement, and process optimization during tool development.
Progressive Die Optimization
In progressive die stamping, springback compensation is often incorporated into multiple forming stations.
Each station contributes to controlling material flow, improving dimensional consistency, and maintaining stable production performance across large manufacturing volumes.
Specialized Tooling Solutions
Advanced tooling concepts may include pressure control features, restrike stations, or customized forming geometries designed specifically to compensate for recovery behavior in challenging applications.
Industrial Applications Where Springback Control Is Critical
Connector Terminals
Electrical terminals require precise geometry to maintain reliable electrical contact and support automated assembly processes.
EMI Shielding Components
EMI shielding parts often contain multiple bends and tight tolerance requirements, making dimensional consistency essential.
Automotive Mounting Brackets
Bracket geometry directly affects assembly accuracy, load distribution, and installation efficiency.
Electronic Housings
Accurate forming is critical for maintaining enclosure fit, structural performance, and component alignment.
Industrial Hardware
Many industrial hardware products require repeatable bend angles to support long-term reliability in large-scale OEM production.
FAQ
Why does stainless steel typically produce more springback than mild steel?
Stainless steel generally has higher yield strength and stores more elastic energy during deformation. This results in greater recovery after the bending load is removed.
Does material thickness affect springback?
Yes. Thicker materials usually exhibit less angular recovery because a larger percentage of the material undergoes permanent plastic deformation.
Can springback be completely eliminated?
No. Elastic recovery is a natural characteristic of metal forming. Manufacturers focus on predicting, controlling, and compensating for it rather than eliminating it entirely.
Which bending method produces the least springback?
Coining generally produces the least springback because it creates extensive plastic deformation within the bend zone.
Why is springback important in progressive die stamping?
Progressive dies rely on consistent forming performance across multiple stations. Uncontrolled recovery can affect dimensional accuracy, assembly quality, and overall process repeatability.
How do manufacturers compensate for springback during production?
Common methods include overbending, die compensation, bottoming, coining, material selection, process optimization, and progressive die design improvements.
Conclusion
Springback is a natural result of elastic recovery during metal bending and sheet metal forming. Its magnitude depends on material properties, bend geometry, grain direction, tooling design, and forming methods. While recovery behavior cannot be completely removed, it can be effectively managed through engineering analysis, process optimization, and proper tooling development.
For manufacturers producing connector terminals, EMI shielding components, electronic housings, automotive brackets, and other precision stamped parts, controlling springback is essential for maintaining dimensional consistency, improving assembly performance, and supporting stable high-volume production. At tqstamping, springback control is integrated into tooling development, metal forming processes, and tolerance management strategies to help achieve reliable OEM manufacturing results across long-term production programs.
