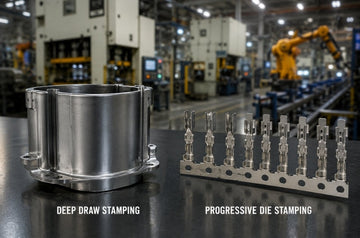

Deep Draw Stamping vs Progressive Die Stamping: How to Choose the Right Process for OEM Parts

Selecting the right metal stamping process is one of the most important decisions during OEM product development. The choice affects tooling investment, dimensional consistency, production efficiency, assembly requirements, and long-term manufacturing costs.

Among the most widely used forming methods, deep draw stamping and progressive die stamping serve very different manufacturing purposes. While both processes rely on precision tooling and press-driven metal forming, they are optimized for different part geometries, material behaviors, and production objectives.

Understanding the engineering differences between these processes helps procurement teams, product engineers, and OEM manufacturers reduce production risks and improve manufacturing efficiency.

What Makes Deep Draw Stamping Different From Progressive Die Stamping?

The fundamental difference lies in how the material is transformed.

Deep draw stamping creates hollow, seamless components by forcing a flat metal blank into a die cavity while controlling material flow throughout the forming process. The material stretches and flows inward to create depth.

Progressive die stamping uses a continuous coil-fed strip that advances through multiple tooling stations. Each station performs a specific operation such as punching, blanking, bending, embossing, coining, or forming until the final part is completed.

Deep draw stamping is primarily used to create depth and enclosed geometries. Progressive die stamping is designed to efficiently manufacture complex precision components with multiple features at high production speeds.

How Deep Draw Stamping Forms Hollow Components

Deep draw stamping begins with a flat metal blank positioned over a die opening. A blank holder applies controlled pressure while a punch pushes the material into the die cavity.

Unlike conventional stamping operations that primarily cut or bend metal, deep drawing relies on controlled material flow. As the punch travels downward, material from the flange area gradually moves into the cavity and forms the component wall.

Several engineering factors determine whether a deep drawing operation succeeds:

• Material ductility

• Drawing ratio

• Blank holder force

• Punch radius

• Die radius

• Lubrication conditions

• Material thickness

One of the most critical considerations is the drawing ratio, which measures the relationship between blank size and final component diameter. As drawing ratios increase, material flow becomes more difficult to control, increasing the risk of tearing, excessive thinning, or dimensional instability.

For deep components, a single draw operation may not be sufficient. Manufacturers often use multiple redraw stages to gradually achieve the required depth while maintaining wall integrity and dimensional consistency.

Typical deep drawn components include:

• Battery cans

• Sensor housings

• Filter shells

• Medical enclosures

• Cylindrical sleeves

• Industrial containers

• Metal motor housings

The ability to create seamless structures often eliminates welding, joining, and secondary assembly operations.

How Progressive Die Stamping Produces High-Volume Precision Parts

Progressive die stamping is designed for speed, repeatability, and large-scale production.

A continuous metal strip feeds automatically through multiple stations within a progressive die. Each station performs a specific manufacturing operation while the strip advances a predetermined distance after every press stroke.

A single progressive die can perform:

• Punching

• Blanking

• Piercing

• Bending

• Coining

• Embossing

• Extruding

• Cutoff operations

Because multiple manufacturing steps occur simultaneously, progressive die stamping achieves extremely high production rates while maintaining consistent part quality.

The process is particularly effective for producing:

• Connector terminals

• Lead frames

• EMI shielding components

• Electrical contacts

• Precision brackets

• Relay components

• Busbars

• Electronic hardware

For high-volume manufacturing, progressive tooling provides excellent production repeatability and low cost per part.

Deep Draw Stamping vs Progressive Die Stamping Comparison

Tooling Design and Manufacturing Considerations

Tooling requirements differ significantly between the two processes.

Deep draw tooling focuses on controlling material flow during deformation. Engineers must carefully design punch geometry, die radii, lubrication systems, draw beads, and blank holder pressure.

Insufficient blank holder force may cause wrinkling. Excessive force can restrict material flow and increase tearing risk.

Progressive die tooling focuses on strip progression and station optimization. Engineers must carefully design strip layouts, pilot locations, carrier systems, and forming sequences to achieve stable mass production.

In high-volume manufacturing environments, tooling durability directly affects production efficiency, quality consistency, and total manufacturing costs.

Material Behavior and Forming Risks

Material behavior is one of the most important factors influencing stamping success.

For deep draw stamping, common forming challenges include:

• Wrinkling in the flange area

• Tearing near punch radii

• Excessive wall thinning

• Surface scratching

• Uneven material flow

These issues become more severe as draw depth increases or drawing ratios approach material limits.

For progressive die stamping, common challenges include:

• Burr formation

• Tool wear

• Strip misalignment

• Forming cracks

• Feature distortion

Proper tooling maintenance, process monitoring, and material control are essential for maintaining production stability.

Tolerance Control and Dimensional Consistency

Precision manufacturing requires more than achieving acceptable prototype dimensions. The real challenge is maintaining consistency throughout long production runs.

Deep draw stamping typically focuses on controlling:

• Draw depth

• Wall thickness variation

• Roundness

• Concentricity

• Surface finish

Progressive die stamping focuses on:

• Hole position accuracy

• Bend angle repeatability

• Feature alignment

• Edge quality

• Overall dimensional consistency

For OEM manufacturers producing hundreds of thousands or millions of parts annually, production repeatability is often more valuable than achieving extremely tight dimensions on a single sample.

Stable process capability reduces assembly issues, minimizes rejects, and improves supply chain reliability.

Cost and Production Efficiency Comparison

Tooling investment should always be evaluated alongside total manufacturing cost.

Deep draw stamping typically requires specialized tooling and process development. However, the ability to create seamless structures often eliminates welding, machining, and assembly operations.

Progressive die stamping generally requires a larger initial tooling investment but delivers extremely low piece costs at high production volumes.

When evaluating manufacturing economics, OEM buyers should consider:

• Tooling cost

• Production volume

• Secondary operations

• Scrap rate

• Labor requirements

• Quality consistency

The most cost-effective process is often the one that reduces total manufacturing complexity rather than simply offering the lowest tooling price.

When Deep Draw Stamping Is the Better Choice

Deep draw stamping is often preferred when:

• Part depth exceeds diameter

• Seamless construction is required

• Leak prevention is critical

• Pressure resistance is necessary

• Structural strength is important

• Secondary welding should be eliminated

Common applications include battery enclosures, sensor housings, medical containers, fluid reservoirs, filter shells, and industrial equipment housings.

When Progressive Die Stamping Is the Better Choice

Progressive die stamping is often the preferred solution when:

• Annual production volumes are high

• Multiple features must be integrated

• Tight repeatability is required

• Fast production speeds are important

• Material utilization must be optimized

• Precision assembly is required

Common applications include connector terminals, lead frames, EMI shielding components, electrical contacts, precision brackets, and consumer electronics hardware.

Can Deep Draw and Progressive Die Processes Be Combined?

Many advanced OEM products combine multiple forming technologies.

A deep drawn housing may undergo secondary piercing, trimming, flanging, embossing, or precision forming operations. Some manufacturers integrate drawing operations into transfer die systems or progressive forming lines to improve productivity.

The most effective manufacturing strategy depends on part geometry, production volume, tolerance requirements, and assembly considerations.

OEM Decision Matrix for Process Selection

When selecting between deep draw stamping and progressive die stamping, OEM buyers should evaluate the following factors:

Early design-for-manufacturing evaluation helps manufacturers select the most efficient process while reducing tooling revisions and development delays.

Conclusion

Deep draw stamping and progressive die stamping are both highly effective manufacturing processes, but they solve different engineering challenges.

Deep draw stamping excels at producing seamless, deep, and structurally strong components through controlled material flow and multi-stage forming operations. Progressive die stamping provides unmatched efficiency for manufacturing precision components with multiple integrated features at high production volumes.

For OEM manufacturers, the optimal choice depends on part geometry, material behavior, tolerance requirements, production volume, and total manufacturing cost. Evaluating these factors early in product development helps reduce risk, improve production efficiency, and support long-term manufacturing success.

As a precision metal stamping manufacturer, tqstamping works closely with OEM customers to evaluate part designs, optimize tooling strategies, and identify the most efficient manufacturing approach for scalable, high-quality production.

FAQ

Is deep draw stamping better than progressive die stamping?

Neither process is universally better. Deep draw stamping is ideal for deep, seamless, and hollow components, while progressive die stamping is generally preferred for high-volume precision parts with multiple formed features.

What is the main limitation of deep draw stamping?

The primary limitation is material deformation. As draw depth increases, controlling material flow becomes more challenging, increasing the risk of wrinkling, tearing, and wall thinning.

Can stainless steel be used in both stamping processes?

Yes. Stainless steel is commonly used in both deep draw stamping and progressive die stamping. Material grade, thickness, and ductility determine how effectively it can be formed.

Which process offers better tolerance control?

The answer depends on the feature being measured. Deep draw stamping excels at maintaining depth and concentricity, while progressive die stamping provides excellent control over feature positioning, hole locations, and dimensional repeatability.

How does tooling cost compare between the two processes?

Both processes require significant tooling investment. Progressive die tooling is often more complex due to multiple stations, while deep draw tooling requires specialized design to manage material flow and drawing forces.

Can deep drawn parts be produced in high-volume manufacturing?

Yes. Deep draw stamping is widely used for medium- and high-volume production of battery housings, metal cans, sensor shells, medical components, and industrial enclosures.
