Why Choosing the Wrong Stamping Process Increases Cost
Selecting the wrong stamping process does not only affect tooling cost. It directly impacts production efficiency, part consistency, and delivery timelines. In high-volume manufacturing, these issues quickly scale and disrupt project performance.
In real production environments, a mismatch between process and application often leads to increased labor cost, unstable tolerances, and delays caused by rework or tooling adjustments. Understanding the difference between progressive die stamping and traditional stamping helps prevent these risks early in the design and sourcing stage.

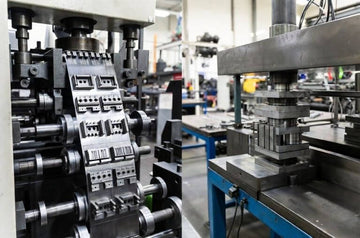

Progressive Die vs Traditional Stamping – What’s the Difference
The core difference lies in how operations are executed.
Progressive die stamping integrates multiple operations into a single die. A metal strip feeds continuously through sequential stations, and each press stroke performs a defined step until the finished part is separated at the final station.
Traditional stamping relies on separate dies. Each operation such as cutting or bending is performed individually, and parts are transferred between machines or setups.
This structural difference directly affects EFFICIENCY, CONSISTENCY, and COST CONTROL in production.
How Progressive Die Stamping Works
Progressive die stamping is designed for continuous, high-speed manufacturing with stable process control.
The process begins with coil feeding, where the metal strip is advanced into the press at a precise pitch. Feeding accuracy is critical, as even minor deviation can affect all downstream features. Pilot pins then lock the strip into position at each station, maintaining alignment and preventing cumulative tolerance errors.
Each station performs a specific operation such as piercing, blanking, bending, or forming. The sequence is carefully engineered to control material flow and minimize stress. At the final station, the finished part is cut off while the remaining strip is collected as scrap.
Because the part remains attached to the strip throughout the process, feature alignment is maintained. This is essential for applications such as connector housings and precision brackets, where dimensional relationships must remain stable across large production volumes.
In industrial production, manufacturers like tqstamping optimize this process using precision equipment from AMADA and Trumpf, maintaining tolerances within ±0.01 mm while supporting high-volume output.
Progressive vs Traditional Stamping – Key Differences
Production Efficiency
Progressive stamping operates continuously with minimal interruption. A single press completes all operations, delivering high-speed output with consistent cycle time.
Traditional stamping requires multiple setups and machines. Parts must be transferred between stages, which slows production and increases handling complexity.
If traditional stamping is used for high-volume production, labor and transfer time increase significantly, reducing overall efficiency.
Cost Structure
Cost must be evaluated across the full production lifecycle rather than tooling alone.
Progressive stamping involves higher initial tooling cost but delivers lower per-part cost at scale due to automation and reduced labor.
Traditional stamping requires lower upfront investment but results in higher unit cost as production volume increases.
Using progressive stamping for low-volume projects can lead to unnecessary tooling cost, while relying on traditional stamping for large-volume production often results in rising labor cost and inconsistent output.
Design Flexibility
Progressive stamping uses highly integrated tooling. Once the die is built, design modifications require significant changes, which can increase cost and lead time.
Traditional stamping uses independent dies, making it easier to adjust individual operations during development. This flexibility reduces risk when the design is still evolving.
In practice, manufacturers like tqstamping often begin with flexible processes for prototyping and transition to progressive tooling once the design becomes stable.
Part Complexity and Manufacturing Capability
Progressive stamping is ideal for parts that require multiple features with consistent geometric relationships. It is commonly used for components that demand repeatable precision across high-volume production.
Traditional stamping allows parts to be repositioned between operations, enabling multi-angle forming and more flexible processing paths.
For example, Type-C connector shells require precise alignment between openings and shielding features, making progressive stamping the preferred method. In contrast, larger mounting brackets with complex forming directions may require traditional stamping to achieve the necessary geometry.
Precision and Repeatability
Progressive stamping maintains part alignment throughout the process, reducing positional variation between operations. This results in strong CONSISTENCY and stable quality across large production runs.
Traditional stamping introduces more handling steps, which increases the risk of misalignment and variation. Maintaining precision requires stricter process control, including careful management of die alignment and tooling condition.
Key factors influencing precision include feeding accuracy, pilot positioning, and tool wear control. Without proper management, variation between batches can occur, especially in multi-stage operations.
Cost and Production Trade-Offs
In real manufacturing scenarios, cost differences become more significant as production volume increases.
For example, a project producing 500,000 electronic connector housings annually will face very different cost structures depending on the process. Traditional stamping requires multiple setups and operators, increasing labor cost and cycle time. Progressive stamping completes all operations in a continuous process, reducing labor input while improving throughput and consistency.
This is why high-volume industries such as automotive and electronics rely on progressive die systems for stable and cost-effective production.
When Not to Use Progressive or Traditional Stamping
Progressive stamping is not suitable when production volume is low, design changes frequently, or tooling investment cannot be justified. In these cases, the cost of building a complex die may outweigh its efficiency benefits.
Traditional stamping becomes inefficient when production volume is high, tight tolerances must be maintained across multiple features, or labor cost becomes a major factor. In such scenarios, relying on multiple operations increases both cost and variability.
Selecting the wrong process often leads to higher total cost and reduced production stability.
Common Applications for Each Stamping Process
Progressive stamping is widely used in automotive brackets, electronic connector shells such as Type-C, HDMI, and DP housings, shielding components, and appliance metal parts. These applications require high precision, repeatability, and large production volumes.
Traditional stamping is commonly used for large structural components, custom enclosures, and low-volume prototype parts where flexibility and lower tooling investment are more important.
In high-precision connector manufacturing, companies like tqstamping use progressive die systems to ensure stable output and repeatable quality across millions of parts.
How to Choose Between Progressive and Traditional Stamping
A practical selection approach focuses on production volume, part geometry, and design stability.
High-volume production favors progressive stamping due to its efficiency and cost advantages. Low-volume production is better suited for traditional stamping due to lower initial investment.
Parts with complex, repeatable features benefit from progressive stamping, while parts requiring flexible forming or multiple orientations are better suited for traditional methods.
If the design is stable, progressive tooling improves long-term production efficiency. If the design is still evolving, traditional stamping provides greater flexibility during development.
Working with an experienced manufacturer helps ensure that the selected process aligns with cost targets, technical requirements, and production goals.
FAQ
What is the main difference between progressive and traditional stamping?
Progressive stamping integrates multiple operations into a single die with continuous strip feeding, allowing parts to be formed in one automated sequence. Traditional stamping uses separate dies for each operation, requiring part transfer between stages, which increases handling time and introduces more variation in positioning and alignment.
Which stamping method is more cost-effective?
Cost effectiveness depends on production volume. Traditional stamping is more economical for low-volume projects due to lower tooling investment. Progressive stamping becomes more cost-efficient at high volumes, as automation reduces labor, improves cycle time, and lowers the per-part cost over long production runs.
What materials can be used in progressive die stamping?
Progressive die stamping supports a wide range of materials, including stainless steel, aluminum, copper, brass, and alloy steels. Material selection is based on strength, formability, conductivity, and corrosion resistance, ensuring the final part meets both mechanical performance and manufacturing requirements.
Can progressive stamping achieve tight tolerances?
Yes. Progressive stamping can maintain tight tolerances, often within ±0.025 mm or better. This is achieved through controlled strip feeding, pilot pin positioning, and stable die alignment, which ensure consistent feature relationships across high-volume production without cumulative positioning errors.
How do I determine the best process for my project?
Process selection depends on production volume, part geometry, and design stability. High-volume, repeatable parts typically benefit from progressive stamping, while low-volume or frequently changing designs are better suited for traditional methods. Working with experienced manufacturers like tqstamping helps optimize cost, tooling strategy, and production efficiency.
Choosing the Right Stamping Process for Your Production
Progressive die stamping and traditional stamping each serve different manufacturing needs. Progressive stamping delivers high EFFICIENCY, CONSISTENCY, and cost control in large-scale production, while traditional stamping provides flexibility and lower initial investment for smaller runs.
In practical manufacturing, the goal is not to choose the most advanced process, but the most appropriate one for the application. With integrated capabilities in tooling design, precision stamping, and quality control, manufacturers like tqstamping help ensure stable production, controlled cost, and reliable performance from prototype to mass production.
