Modern vehicles depend on automotive electrical connectors to deliver stable power and signal transmission across increasingly complex systems. As platforms shift from 12V architectures to high-voltage EV systems, connector performance now directly impacts RELIABILITY, SAFETY, and CONSISTENCY.
These components form the conductive backbone of the vehicle. They must maintain stable electrical contact under high current loads, vibration, and thermal stress while supporting efficient system integration.
At tqstamping, precision metal stamping enables scalable production of these components with tight tolerances and repeatable quality across high-volume automotive programs.
How Automotive Electrical Systems Are Changing from ICE to EV
Traditional ICE vehicles operate on low-voltage systems powered by a battery, alternator, and starter. Electrical loads are relatively stable, and connector requirements are less demanding.
Electric vehicles introduce new engineering challenges. High-voltage systems typically operate between 300V and 800V, directly supplying power to propulsion and onboard electronics. This increases current density, thermal exposure, and connection complexity.
Key implications include:
- Larger conductive cross-sections to handle higher current loads
- Improved thermal resistance to manage heat buildup
- Enhanced insulation for high-voltage safety
- More complex power distribution through Power Distribution Units
These changes require automotive electrical connectors with higher precision and stronger durability.

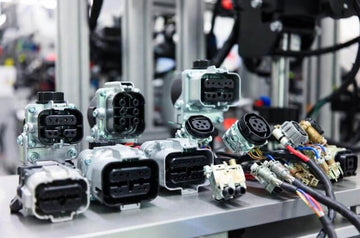

Automotive Electrical Connectors – Structure and Function
How Connectors Enable Stable Electrical Connections
Automotive electrical connectors link circuits while maintaining electrical integrity under mechanical and environmental stress. Most connectors use a two-part structure consisting of a male terminal and a female contact interface.
This design ensures controlled contact force and secure engagement. Stable contact geometry is critical to maintaining low resistance and preventing intermittent signal loss.
Materials and Stamping Processes for Connectors
Connector performance depends on both material selection and manufacturing accuracy.
Common materials include:
- Copper alloys for high conductivity
- Brass for balanced strength and formability
- Phosphor bronze for elasticity and contact stability
Surface plating improves long-term performance:
- Tin plating reduces fretting corrosion
- Silver plating enhances conductivity under high current
- Gold plating supports sensitive signal transmission
Key Design Factors for Automotive Electrical Connectors
Designing automotive electrical connectors requires balancing electrical, mechanical, and thermal performance.
Key considerations include:
- Current load and conductor cross-section
- Contact resistance and energy efficiency
- Temperature rise during continuous operation
- Vibration resistance in dynamic environments
- Compatibility between base material and plating
Small dimensional variations can significantly impact performance. Precision manufacturing ensures stable contact behavior across repeated cycles.
How Precision Metal Stamping Ensures Connector Performance
Progressive Die Stamping Workflow
Precision stamping is the primary method used to manufacture automotive connector terminals. The process follows a controlled sequence.
Material preparation ensures consistent thickness and surface condition before forming begins. Coil-fed material then passes through progressive die stations where operations such as blanking, forming, and piercing are completed in sequence. This approach maintains repeatable geometry across each production cycle.
Critical contact features are shaped during forming to achieve the required elasticity and contact force. Surface plating is applied either before or after stamping, depending on performance and cost requirements. This step improves corrosion resistance and reduces contact resistance.
Final inspection verifies dimensional accuracy and surface integrity using precision measurement systems. This ensures stable performance across high-volume production.
At tqstamping, this process is supported by advanced AMADA and Trumpf equipment, enabling tight tolerance control and consistent output.
Applications of Automotive Electrical Connectors
Automotive electrical connectors are used throughout vehicle systems to support power distribution and signal transmission.
Typical applications include:
- Battery management systems
- Power Distribution Units
- Electronic control units and sensors
- Lighting and infotainment systems
- Charging and energy management systems
As vehicles integrate more electronics, connector density increases, making manufacturing consistency more critical.
Choosing a Reliable Manufacturing Partner
Connector performance depends on both design and production capability. A reliable supplier must ensure stable quality across large production volumes.
Key factors include:
- Precision tooling and stamping capability
- Control over plating and secondary processes
- Certified quality systems for automotive production
- Ability to support both prototyping and mass production
tqstamping operates under IATF 16949, ISO 9001, and ISO 14001, ensuring traceable processes and consistent quality. With ±0.01mm precision control and high-volume capacity, the company supports demanding automotive and electronics applications.
FAQ
What are automotive electrical connectors used for?
Automotive electrical connectors link circuits across vehicle systems, enabling reliable power distribution and signal transmission. They are widely used in battery management systems, sensors, lighting, and control units, ensuring stable communication and consistent energy flow under varying operating conditions.
What materials are used in automotive electrical connectors?
Common materials include copper alloys, brass, and phosphor bronze, selected for their conductivity, strength, and elasticity. Surface plating such as tin or silver is applied to improve corrosion resistance, reduce contact wear, and maintain stable electrical performance over long-term use.
Why is precision important in automotive electrical connectors?
Precision ensures consistent contact geometry, which directly affects electrical stability and connection reliability. Even small dimensional variations can increase contact resistance or cause intermittent failure. Precision stamping maintains tight tolerances across high-volume production, supporting long-term connector performance.
How does stamping improve connector production efficiency?
Progressive die stamping integrates multiple forming operations into a continuous process, reducing manual handling and cycle time. This approach improves repeatability, supports large-scale production, and lowers per-part cost while maintaining consistent quality across high-volume automotive programs.
How can connector reliability be improved in harsh environments?
Reliability improves through proper material selection, optimized surface plating, and controlled manufacturing processes. Design features such as secure locking structures and stable contact force help maintain electrical performance under vibration, temperature variation, and exposure to moisture or contaminants.
Precision Manufacturing for Automotive Electrical Connectors
As vehicle systems continue to evolve, the demand for high-performance automotive electrical connectors increases. Reliable electrical connectivity depends on material selection, precise design, and stable manufacturing processes.
Precision metal stamping provides a scalable solution for producing connectors with consistent geometry and performance. By controlling each stage of production, manufacturers can achieve RELIABLE PERFORMANCE across high-volume applications.
tqstamping supports this process through integrated tooling, stamping, and quality control systems, helping manufacturers maintain stable electrical performance in modern automotive platforms.
