How Copper Alloys Are Used in Metal Stamping
Copper alloys for metal stamping are widely applied in industries where electrical performance, thermal stability, and dimensional accuracy must be maintained at scale.
Unlike general sheet metal, copper-based materials are typically selected when performance requirements go beyond structural strength. In applications such as connectors, terminals, and busbar components, conductivity and consistency are more critical than mechanical load capacity.
For engineers and procurement teams, the key challenge is selecting a material that balances conductivity, strength, and manufacturability under real production conditions.
Common Copper Alloys Used in Metal Stamping
Pure Copper Grades – Maximum Conductivity
C11000 and C10200 are widely used in high-conductivity applications.
-
Electrical conductivity – up to 97–101% IACS
-
Thermal conductivity – approximately 380 W/m·K
-
Excellent ductility for complex forming
These materials are commonly used in electrical connectors, power terminals, and conductive assemblies.
However, pure copper has relatively low mechanical strength. In applications requiring structural stability, this limitation must be addressed through design or alloy selection.
Brass – Cost and Machinability Balance
Brass provides improved strength with moderate conductivity.
-
Lower material cost
-
Good machinability
-
Suitable for medium-load applications
It is often used in hardware components and structural electrical parts where cost efficiency is required.
Phosphor Bronze – Spring and Fatigue Performance
Phosphor bronze is designed for cyclic loading applications.
-
High fatigue resistance
-
Stable elasticity
-
Good wear resistance
It is commonly used in spring contacts, relays, and precision connector elements.
High-Performance Copper Alloys
Advanced alloys provide enhanced mechanical performance.
-
Beryllium Copper – strength up to 1000 MPa
-
Aluminum Bronze – strong corrosion resistance
-
Silicon Bronze – stable mechanical behavior
These materials are used in automotive, aerospace, and industrial systems where durability is required alongside conductivity.
How to Choose the Right Copper Alloy for Stamping
Selecting materials for copper-based stamped parts requires balancing multiple engineering factors.
Conductivity vs Strength Trade-Off
-
Pure copper offers maximum conductivity but limited strength
-
Alloying increases strength but reduces electrical performance
For example:
-
Use high-purity copper for electrical transmission
-
Use strengthened alloys where mechanical load is significant
Formability vs Dimensional Accuracy
Highly ductile materials are easier to form but may introduce increased springback and reduced dimensional stability.
In precision applications, tooling design and process control play a critical role in maintaining dimensional accuracy.
Cost vs Production Efficiency
Material selection impacts not only raw material cost but also production efficiency.
-
Softer materials reduce forming force requirements
-
Harder alloys increase tool wear and processing complexity
Optimizing material utilization and production efficiency often has a greater impact on total cost than material price alone.
Why Copper Alloys Perform Well in Stamping Applications
Electrical and Thermal Performance
Copper alloys provide excellent conductivity and heat dissipation.
They are essential in power transmission systems, signal connectors, and thermal management components.
Corrosion Resistance
Copper forms a stable oxide layer that protects the material from further degradation.
This improves reliability in outdoor, humid, and industrial environments.
Formability with Strength Development
Copper alloys combine high ductility for forming with work hardening for strength increase.
During forming, material strength increases as deformation progresses. This must be controlled to avoid cracking or dimensional variation.

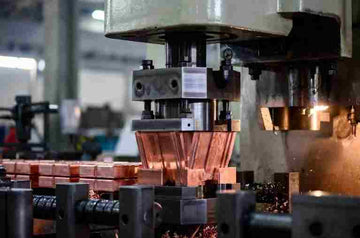

Copper Stamping Process and Critical Production Factors
Tooling Design and Progressive Stamping

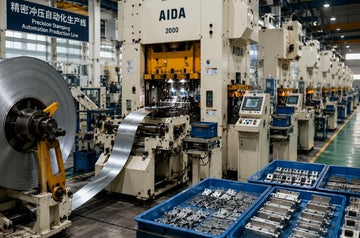

Progressive die stamping is commonly used for high-volume production.
It enables multi-stage forming in a single process, production speeds of 200–600 parts per minute, and consistent geometry across large batches.
Tooling precision directly determines part quality and repeatability.
In high-precision applications, maintaining tight tolerances requires advanced tooling and process control. Manufacturers like tqstamping achieve this through integrated die design and stamping systems, enabling consistent accuracy within ±0.01 mm across high-volume production.
Tolerance Control and Stability
Achieving dimensional accuracy in stamped components depends on die clearance, material thickness consistency, and equipment stability.
In electrical applications, even small deviations can affect performance. Maintaining consistency across production is critical.
Tool Wear and Surface Quality
Copper introduces specific challenges such as adhesion to tooling surfaces, risk of galling, and surface scratching during forming.
These issues are controlled through tool material selection, surface treatment, and lubrication.
Production Consistency in High Volumes
Precision alone is not sufficient. Long-term production requires stable tooling performance, controlled forming conditions, and continuous inspection.
Reliable manufacturers focus on maintaining consistency across large production volumes.
Where Copper Stampings Are Used in Industrial Applications
Electronics and Communication
Copper-based components are essential in Type-C, HDMI, and DVI connectors, shielding systems, and signal transmission components.
These applications require both conductivity and dimensional precision.
In connector and electronic component production, consistency and scalability are critical. Suppliers such as tqstamping support high-volume manufacturing with stable process control and quality systems, ensuring reliable performance across large production batches.
Automotive Systems
Applications include battery connection components, PCB terminals, and sensor systems.
Automotive production requires compliance with IATF 16949 to ensure traceability and quality control.
Energy and Power Systems
Copper components are used in busbars, power distribution systems, and grounding structures.
High conductivity and thermal performance are essential in these applications.
Industrial Applications
Copper-based formed parts are also used in aerospace connectors, medical equipment, and heat exchange systems.
These applications require both precision manufacturing and material reliability.
Common Challenges in Copper Stamping and How to Solve Them
Material Cost Fluctuation
Copper prices can vary significantly. Effective approaches include optimized material usage, efficient production planning, and stable supplier relationships.
Forming Defects
Cracking, deformation, and burr formation can occur. These issues are reduced through proper die design, controlled forming parameters, and intermediate annealing.
Production Stability
Maintaining consistent quality requires automated inspection, process monitoring, and standardized quality systems.
How to Choose a Reliable Copper Stamping Manufacturer
Technical Capability
Evaluate the ability to produce high-precision components, including tight tolerance control, advanced tooling capability, and experience with conductive materials.
Quality Systems
A qualified supplier should comply with ISO 9001, ISO 14001, and IATF 16949 to ensure traceability and process control.
Engineering Support
Efficient collaboration depends on fast technical response, design optimization support, and scalable production capability.
Manufacturers with integrated capabilities can reduce development time and improve production efficiency.
FAQ
What applications benefit most from copper stamping
Copper components are widely used in connectors, terminals, and busbars where high electrical conductivity and dimensional consistency are critical. These applications typically require stable performance under high-volume production conditions, especially in electronics, automotive systems, and power distribution equipment.
How can cracking be prevented during deep drawing
Cracking can be minimized by selecting high-ductility copper alloys, optimizing die radius and clearance, and applying effective lubrication. In multi-stage forming, intermediate annealing helps reduce work hardening and maintain material formability throughout the process.
Is surface plating required for copper parts
Surface plating is often required to improve corrosion resistance, electrical performance, and solderability. Common coatings include tin, nickel, and silver, depending on environmental conditions and functional requirements such as conductivity stability or long-term durability.
What standards are required for automotive components
Automotive copper components must comply with IATF 16949, ensuring strict process control and full traceability. Additional requirements typically include material certification, dimensional inspection, and performance validation to meet reliability standards in automotive applications.
How quickly can custom parts be developed
With complete technical data, including drawings and material specifications, manufacturers can typically provide engineering feedback within 24 hours. Sample production timelines depend on tooling complexity but can be accelerated through optimized die design and process planning.
What thickness range is typical for stamping
Copper stamping thickness typically ranges from 0.05 mm to 2.0 mm, depending on part function and forming complexity. Thinner materials are used for precision contacts, while thicker sections are applied in structural or power-related components.
