Why Material Selection Impacts Stamping Performance
Material selection defines the success of any stamping project. It directly affects PRECISION, CONSISTENCY, and long-term production efficiency.
In aluminum stamping, different alloys respond differently to forming forces. Selecting the wrong aluminum alloy can result in cracking, excessive springback, or unstable dimensional control. This is why selecting the right aluminum alloys for metal stamping is essential for stable production outcomes.
Why Aluminum Alloys Work Well in Metal Stamping
Aluminum alloys are widely used in stamping due to their balanced mechanical and physical properties.
-
Lightweight structure reduces component mass in automotive and electronics
-
Corrosion resistance supports harsh and humid environments
-
Formability enables complex shaping and bending
-
Electrical conductivity supports connector and housing applications
Compared to heavier metals, aluminum sheet for stamping improves production efficiency while maintaining performance. A precision manufacturer with capabilities similar to tqstamping typically leverages these advantages to ensure consistent output in high-volume production.

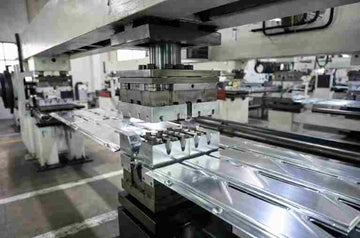

How Metal Stamping Shapes Aluminum Parts
Metal stamping forms flat aluminum sheets into precise geometries using dies and controlled press force. The process integrates punching, bending, and forming into a repeatable production sequence.
In progressive die stamping, aluminum coil passes through multiple stations, with each stage forming specific features. This allows high-speed production while maintaining consistent part geometry.
Key outcomes include:
-
High repeatability across large production volumes
-
Tight tolerance control for assembly compatibility
-
Production efficiency through automation
However, aluminum forming requires precise control of material flow to prevent deformation and maintain dimensional stability.
Common Aluminum Alloys Used in Stamping
Different aluminum stamping alloys provide varying levels of strength, ductility, and corrosion resistance. Selecting the right aluminum alloy for stamping applications is critical for stable forming and long-term performance.
Different aluminum grades used in stamping vary in formability, strength, and surface behavior, which directly impacts manufacturing results.
1xxx Series - Best for Maximum Formability
The 1xxx series contains high-purity aluminum with excellent ductility.
-
Elongation typically exceeds 30%, enabling deep drawing
-
Very low strength limits structural use
-
Ideal for conductive and highly formed components
This series is preferred when forming complexity is high and structural strength is not required.
3xxx Series - Balanced Performance for General Stamping
The 3xxx series offers a balance between strength and formability.
-
Elongation typically ranges from 20% to 30%
-
Moderate tensile strength supports structural stability
-
Good corrosion resistance
3xxx alloys are commonly used in aluminum stamping for appliance parts and industrial components. They provide stable forming behavior for medium-complexity designs.
5xxx Series - Corrosion Resistance with Structural Strength
The 5xxx series contains magnesium, improving both strength and corrosion resistance.
-
Tensile strength typically ranges from 150 to 300 MPa
-
Strong resistance to outdoor and marine environments
-
Moderate formability compared to softer alloys
This series is suitable for structural applications such as automotive panels. However, forming complexity must be controlled to avoid cracking during tight-radius bending.
6xxx Series - Strength-Focused Alloys for Structural Parts
The 6xxx series provides higher strength through heat treatment.
-
Tensile strength can exceed 300 MPa
-
Lower elongation reduces formability
-
Suitable for load-bearing applications
These alloys are used when strength is critical, but stamping operations must be carefully controlled to maintain quality and prevent forming defects.
Key Properties That Affect Aluminum Stamping
Material behavior during stamping directly impacts part quality and production stability.
-
Formability determines how easily aluminum can be shaped without failure
-
Strength influences deformation resistance and load capacity
-
Springback tendency affects final dimensional accuracy
-
Surface sensitivity impacts finishing quality
For consistent production, aluminum stamping alloys must be selected based on both mechanical performance and forming requirements.
Stamping vs Fabrication - When to Use Each for Aluminum
Both stamping and fabrication can process aluminum, but each method suits different production conditions.
-
Metal stamping
-
Best for high-volume production
-
Provides superior repeatability
-
Reduces cost per unit at scale
-
-
Metal fabrication
-
Suitable for prototypes and small batches
-
Allows flexible design changes
-
Requires lower upfront investment
-
If your project involves large production volumes and tight tolerance requirements, stamping is typically the more efficient and scalable solution.
How Precision Is Controlled in Aluminum Stamping
Achieving tight tolerances in aluminum stamping requires control across tooling, process parameters, and measurement systems.
-
Typical tolerance range is ±0.01 mm to ±0.05 mm under optimized conditions
-
Precision tooling ensures consistent feature formation
-
Measurement systems verify dimensional accuracy during production
A manufacturing operation aligned with tqstamping-level precision combines advanced equipment with strict quality control to maintain stable output across high-volume production.
Common Aluminum Stamping Challenges and How to Solve Them
Aluminum materials used in stamping present unique forming challenges that require process optimization.
Springback
Aluminum tends to return to its original shape after forming.
-
Solution - compensate through die design and forming angle adjustment
Cracking
High-strength alloys may crack during forming.
-
Solution - select alloys with sufficient elongation and increase bend radius
Surface Damage
Soft aluminum surfaces are prone to scratching.
-
Solution - apply proper lubrication and optimize tooling surfaces
Material Flow Instability
Uneven deformation can lead to dimensional variation.
-
Solution - optimize press parameters and tooling design
Addressing these challenges improves CONSISTENCY and reduces production variability.
How to Select the Right Aluminum Alloy for Your Project
Selecting the best aluminum alloy for metal stamping projects requires evaluating real production conditions.
Consider the following factors:
-
Part complexity
-
Deep drawing applications benefit from high-ductility alloys such as 1xxx or 3xxx
-
-
Strength requirements
-
Structural components typically require 5xxx or 6xxx alloys
-
-
Environmental exposure
-
Corrosion resistance is critical for outdoor and harsh environments
-
-
Production volume
-
High-volume manufacturing requires stable and repeatable material behavior
-
-
Cost efficiency
-
Material selection must align with long-term production economics
-
A precision stamping manufacturer can evaluate these factors and recommend the most suitable aluminum stamping alloys for each application.
Where Aluminum Stamped Parts Are Used
Aluminum stamping supports a wide range of industrial applications.
-
Automotive components such as lightweight brackets and panels
-
Electronic housings including connector shells and shielding parts
-
Appliance assemblies requiring corrosion-resistant structures
-
New energy systems such as battery enclosures and structural components
These applications rely on RELIABILITY and consistent production quality to ensure long-term performance.
FAQ
Which aluminum alloys are best for metal stamping applications
The optimal choice depends on forming complexity and strength requirements. 1xxx and 3xxx alloys provide excellent formability for complex shapes, while 5xxx and 6xxx alloys offer higher strength for structural components. Material selection should balance ductility, strength, and production stability.
Which aluminum alloy is best for deep drawing
Alloys with high elongation, such as 1xxx and 3xxx series, are best suited for deep drawing. Their superior ductility reduces the risk of cracking during forming and allows consistent material flow in complex geometries.
Is aluminum better than steel for stamping
Aluminum offers lower weight and better corrosion resistance, making it ideal for lightweight applications. Steel provides higher strength and durability. The choice depends on design requirements, structural performance, and environmental conditions.
What causes defects in aluminum stamping
Defects are typically caused by improper alloy selection, insufficient lubrication, or poor tooling design. These factors can lead to cracking, excessive springback, or surface damage, reducing production consistency and part quality.
How do you reduce springback in aluminum stamping
Springback can be reduced through die compensation, optimized forming angles, and controlled press parameters. Proper material selection and tooling design also play a critical role in maintaining dimensional accuracy after forming.
Can aluminum be used for high-volume stamping production
Yes. Aluminum alloys are widely used in high-volume stamping due to their formability and compatibility with automated processes. When paired with optimized tooling and stable process control, they support efficient mass production with consistent quality.
Choosing the Right Aluminum Alloy for Better Results
Choosing suitable aluminum alloys for metal stamping ensures long-term production stability and cost efficiency.
Material performance, forming behavior, and application requirements must be evaluated together to achieve consistent results.
From alloy selection to tooling optimization and mass production, a capable manufacturing partner plays a key role in manufacturing success.
With experience in precision stamping, tight tolerance control, and high-volume production, tqstamping supports global OEM projects with reliable and scalable aluminum stamping solutions.
