In precision manufacturing, the terms tool and die are frequently used together. Many engineers refer to the entire field as tool and die manufacturing, which can make the distinction between the two seem unclear.
Understanding the difference is important for engineers, product designers, and procurement teams. Clear terminology helps manufacturers design efficient processes, control tolerances, and avoid costly production issues.
In modern metal stamping operations, tools and dies work together to convert raw sheet metal into precise components used across automotive, electronics, and industrial equipment. As a precision manufacturing partner, tqstamping helps global customers translate tooling concepts into reliable high-volume production.
What Is a Tool in Manufacturing
In manufacturing, a tool is any device used to cut, shape, support, or modify material during production.
Tools perform the active operations that transform raw material into finished components. They interact directly with the workpiece to carry out machining or forming tasks.
Common manufacturing tools include
-
Cutting tools such as drills, mills, and blades
-
Forming tools used for bending metal
-
Punches used to create holes or stamped features
-
Jigs and fixtures that hold workpieces during machining
In metal stamping manufacturing, tools apply the force and motion required to shape sheet metal. The reliability of these tools directly affects PRODUCTION EFFICIENCY and dimensional CONSISTENCY.
For example, punches in a stamping press perform the cutting or forming action that creates precise holes, slots, or contours in metal components.
What Is a Die in Manufacturing
A die is a specialized type of tool designed to form or cut material into a specific shape.
While tools perform many different operations, dies are engineered to deliver precise and repeatable geometry during high-volume production.
Dies are commonly used in
-
metal stamping
-
sheet metal fabrication
-
extrusion processes
-
injection molding
-
wire forming
In a stamping system, the die determines the final geometry of the part. The workpiece is pressed into the die cavity where controlled force reshapes the material.
Most stamping dies include two key elements
-
Punch – the protruding component that applies pressure
-
Die block – the cavity that defines the part shape
The punch forces the metal into the die block, creating a controlled deformation that produces a finished component.
Because dies define the final part geometry, they must maintain tight tolerances and long-term reliability during continuous production cycles.
Tool vs Die – What’s the Real Difference
Although the terms are often used together, their roles in manufacturing are different.
The easiest way to understand the relationship is this
All dies are tools, but not all tools are dies.
A tool refers to any device used to perform a manufacturing operation. A die refers specifically to the tool component that defines the final shape of a part.
Key differences include
Scope
-
Tools include many devices used in machining and fabrication
-
Dies represent a specific category of forming tools
Function
-
Tools perform cutting, drilling, or forming actions
-
Dies control the geometry and dimensions of the finished component
Movement
-
Tools are often the moving elements that apply force
-
Dies typically remain stationary within the press
Design
-
Tools can be multipurpose
-
Dies are usually custom engineered for a specific product
Understanding this distinction helps manufacturers choose the right tool and die manufacturing strategy for efficient production.

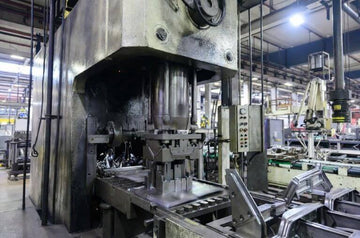

How Tools and Dies Work in Metal Stamping
In metal stamping, tools and dies operate together inside a press to convert sheet metal into finished components.
The process works through a controlled sequence of steps.
-
A sheet metal strip or blank enters the stamping press
-
A punch tool moves downward with controlled force
-
The material is pressed into the die cavity
-
The die shapes the metal into the final component geometry
This interaction between punch and die allows manufacturers to produce thousands or millions of identical parts with high REPEATABILITY.
Stamped components are widely used in
-
automotive brackets and structural parts
-
electronic connector housings
-
appliance assemblies
-
industrial equipment components
For example, precision metal stamping is commonly used to manufacture connector housings such as
-
Type-C connector shells
-
HDMI metal housings
-
RJ45 shielding shells
-
DisplayPort metal frames
At tqstamping, advanced stamping equipment from AMADA and Trumpf allows tooling systems to maintain tolerances within ±0.01 mm, supporting stable high-volume production for electronics and automotive industries.
Common Types of Dies Used in Metal Stamping
Different stamping operations require different die designs. The choice of die depends on part complexity, production volume, and material properties.
Simple Die – One Operation Per Press Stroke
A simple die performs only one cutting or forming action during each press stroke.
These dies are often used for straightforward parts where only one stamping operation is required.
They offer lower tooling cost but limited efficiency when multiple operations are needed.
Compound Die – Multiple Operations in One Stroke
A compound die performs several cutting or forming operations in a single press stroke.
For example, a compound die may punch holes and trim the outer shape of a part at the same time.
This design improves alignment accuracy and reduces handling between operations.
Progressive Die – The Most Efficient Stamping Method
A progressive die is widely used for high-volume metal stamping production.
In this system, a metal strip feeds continuously through multiple stations inside the die.
Each station performs a specific operation such as
-
punching
-
bending
-
forming
-
trimming
By the final station, the completed component is separated from the strip.
Advantages of progressive die stamping
-
continuous automated production
-
improved material utilization
-
consistent part accuracy
-
high production speed
This method is commonly used for manufacturing electronic connector components and other small precision metal parts.
Transfer Die – Ideal for Large or Complex Parts
A transfer die operates differently from progressive dies.
Instead of using a continuous strip, individual blanks are transferred between stations by mechanical arms or conveyors.
Each station performs one operation until the final part is completed.
Transfer dies are typically used for
-
large automotive components
-
deep-draw metal parts
-
structural components with complex shapes
Main Components of a Stamping Die
A stamping die consists of several precision components that work together to maintain alignment and control forming pressure.
Understanding these components helps engineers design reliable tool and die systems.
Die block
The die block contains the cavity that defines the final geometry of the part.
Punch
The punch is the male component that presses the metal into the die cavity. Punch design determines cutting precision and forming accuracy.
Punch plate
This plate secures the punch to the press ram and ensures stable positioning during operation.
Stripper plate
The stripper plate removes the sheet metal from the punch after each stroke, preventing the material from sticking to the tool.
Guide pins
Guide pins align the upper and lower sections of the die. Proper alignment ensures accurate stamping and protects tooling from premature wear.
Pressure plates and backup plates
These plates distribute forming forces throughout the die structure and prevent deformation under high press loads.
At tqstamping, advanced measurement systems including 2.5D measuring instruments and optical projectors help confirm tooling dimensions before production begins.
Toolmaker vs Die Maker – What’s the Difference
Toolmakers and die makers are closely related roles within manufacturing.
A toolmaker produces a wide range of manufacturing tools such as fixtures, gauges, cutting tools, and machine tooling components.
A die maker specializes specifically in manufacturing dies used in forming or stamping processes.
Die making requires extremely tight tolerances because the die directly determines the final shape of the part.
For high-volume production, die makers must ensure correct punch-die clearance, accurate alignment, and long tool life under repeated press cycles.
Because of this specialization, die makers are often considered precision toolmaking experts within the broader tooling industry.
Industries That Rely on Tool and Die Manufacturing
Tool and die manufacturing supports nearly every sector that produces metal components.
Automotive manufacturing
Stamped parts such as brackets, mounting plates, and reinforcement components support vehicle assembly.
Electronics industry
Precision stamping produces shielding housings and connector shells for devices such as laptops, smartphones, and networking equipment.
Appliance manufacturing
Stamped metal frames and structural parts are widely used in washing machines, refrigerators, and other household appliances.
New energy vehicles
Battery housings, electrical busbars, and cooling plates rely on high-precision stamping processes.
As electronic devices become smaller and automotive structures become lighter, the demand for precision metal stamping continues to grow.
Manufacturers like tqstamping support these industries by providing custom metal stamping solutions, from tooling design to high-volume production.
Why Precision Tool and Die Manufacturing Matters
Precision tooling determines whether a production line operates efficiently or experiences repeated failures.
Poor tooling design can cause dimensional variation, excessive scrap material, shortened tool life, and production downtime.
Well-designed tool and die systems ensure consistent dimensional accuracy, stable high-volume manufacturing, efficient material utilization, and lower long-term production costs.
With over 17 years of manufacturing experience, tqstamping provides integrated capabilities including tool and die design, precision metal stamping, CNC machining support, and surface finishing solutions.
Operating under ISO 9001, ISO 14001, and IATF 16949 quality systems, the company maintains traceable production control from tooling development to final part delivery.
FAQ
What is tool and die in metal stamping
Tool and die manufacturing refers to the design and production of specialized tooling used in metal stamping processes. These tools cut, shape, or form sheet metal into precise components. Well-designed tooling systems enable manufacturers to achieve consistent tolerances, repeatable production, and high manufacturing efficiency in large-scale industrial applications.
What is the difference between a tool and a die
A tool is any device used to cut, shape, or modify materials during manufacturing. A die is a specific type of tool designed to define the final geometry of a part. In metal stamping, the punch applies force while the die cavity determines the finished shape of the stamped component.
Why are dies custom designed
Dies are typically custom engineered for a specific product design and production process. Custom dies ensure correct punch-die clearance, dimensional accuracy, and long tool life. In high-volume precision metal stamping, custom die design is essential to maintain consistent part quality and stable manufacturing performance.
What industries use tool and die manufacturing
Tool and die manufacturing supports many industrial sectors that require high-volume metal components. Major industries include automotive, electronics, appliance manufacturing, aerospace, and new energy equipment. Precision dies enable efficient production of parts such as brackets, connector housings, and structural metal components.
Conclusion
Tools and dies form the foundation of modern precision manufacturing.
Tools perform the cutting and forming operations that transform raw materials. Dies provide the geometry that defines the finished component.
Together they enable efficient high-volume metal stamping, allowing manufacturers to produce millions of identical parts with reliable quality.
At tqstamping, precision tooling, advanced stamping equipment, and strict quality control help convert design concepts into stable production solutions.
For industries that rely on consistent metal components, the right tool and die manufacturing partner makes the difference between concept and reliable large-scale production.
