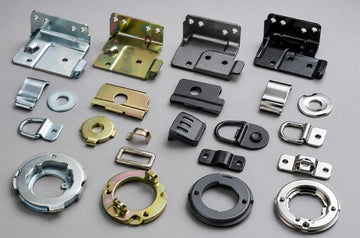

Choosing the Right Surface Finish for Stamped Metal Parts

Know Your Part’s Environment and Requirements

Corrosion Resistance

Select a finish that matches environmental exposure and required lifespan. Salt spray testing is standard: imitation chrome can exceed 1000 hours, while zinc plating may only resist water-based corrosion for shorter periods.

Wear Resistance and Surface Hardness

Techniques such as anodizing, nitriding, and carburizing increase surface hardness and extend part life in high-volume production.

Electrical and Thermal Requirements

Electronic and medical components may require conductive or insulating surfaces. Gold or silver plating ensures conductivity without cytotoxicity, while anodizing aluminum can reduce reflection and improve heat dissipation.

Aesthetic Considerations

Surface appearance includes color, gloss, and surface texture. Polishing, grinding, or electropolishing can produce decorative finishes or mirror surfaces.

Popular Surface Finishes and When to Use Them

Anodizing (Aluminum & Alloys)

• Increases hardness and corrosion resistance

• Reduces electrical conductivity, aiding thermal management

• Provides uniform surface finish suitable for heat-sensitive applications

Electroplating (Zinc, Nickel, Chrome, Imitation Chrome)

• Applicable to a wide range of metals

• Enhances corrosion resistance, lubricity, and visual quality

• Imitation chrome offers both high corrosion resistance and environmental compliance

Electrophoresis

• Ensures high adhesion on complex structures

• Supports wide color variety

• Ideal for components with tight tolerances or micro-scale geometry

Powder Coating

• Cost-effective with strong surface coverage

• Masks minor surface defects

• Commonly used in industrial and construction applications

Sandblasting, Polishing, Grinding

• Prepares surfaces for further coating

• Removes burrs and residues

• Enhances aesthetic appearance and adhesion

Heat Treatment & Diffusion Processes (Carburizing, Nitriding, Boriding)

• Improve hardness, wear resistance, and fatigue life

• Suitable for high-stress components and moving assemblies

Balancing Cost and Manufacturing Feasibility

• Material vs. Performance: Imitation chrome offers high durability but at higher cost; zinc plating is more economical.

• Process Complexity: Barrel paint is cheap but only suitable for simple geometries; powder coating is durable but requires curing.

• Production Volume: High-volume stamping lines require finishes compatible with inline processing to avoid bottlenecks.

Industry Requirements to Consider

Medical Components

• Biocompatibility and cytotoxicity compliance (ISO 10993)

• Conductive or insulating properties for electronic medical devices

Automotive Components

• High wear and corrosion resistance

• Compliance with IATF 16949 standards

• Coatings must survive electrocoating and salt spray exposure

Marine and Industrial Parts

• Long-term corrosion resistance (>1000 hours salt spray)

• Durable coatings like imitation chrome or nitrided surfaces

Challenges Unique to Stamped Components

• Burrs, micro-cracks, and residual oil require thorough pre-treatment

• Sandblasting improves adhesion and removes contaminants

• Stamping residual stresses may influence coating uniformity and long-term durability

Environmental and Compliance Factors

• RoHS and REACH restrict hazardous materials such as lead, cadmium, and hexavalent chromium

• Eco-friendly alternatives: trivalent chromium passivation, cyanide-free plating, water-based electrophoresis

How Surface Finishes Affect Assembly

• Coating thickness may alter threads and fit tolerances

• Self-lubricating finishes (e.g., zinc sulfide, sulfide coatings) can improve assembly speed

• Ensure final surface compatibility with fasteners, mating components, and automated assembly

Checking Surface Quality

• Adhesion: cross-hatch or tape test

• Thickness: eddy current or X-ray fluorescence measurement

• Corrosion: salt spray, humidity, or thermal cycling tests

• tqstamping integrates 2.5D measurement systems to validate code readability and dimensional compliance

Lifetime and Maintenance Tips

• Zinc plating in harsh marine environments may require periodic replacement or upgrading to zinc-nickel or chrome alternatives

• Powder coatings can be repaired locally by sanding and recoating without full component replacement

Let Professionals Handle Precision Surface Treatments
Proper surface treatment affects performance, cost, and delivery. tqstamping offers 17 years of precision stamping expertise, from tooling design to surface finishing. Certified to IATF 16949, ISO 9001, and ISO 14001, we serve global OEMs including BYD, Xiaomi, Dell, HP, and Amphenol. Our ±0.01 mm tolerance and annual output of 50 million units ensure consistent high-quality delivery across automotive, electronic connectors, and EV components. Contact us for expert guidance on surface treatment selection.

FAQ

What is the difference between powder coating and electrophoresis?Powder coating is cost-effective and masks minor surface defects, while electrophoresis ensures strong adhesion and suits complex geometries.

Will part dimensions change after surface treatment?
Plating or coating adds thickness, so design tolerances should account for the additional layer.

Which surface treatments are most environmentally friendly?
Trivalent chromium passivation, cyanide-free plating, water-based electrophoresis, and solvent-free powder coatings reduce environmental impact.

How to ensure suitability for medical devices?
Verify compliance with ISO 10993 and confirm required electrical or thermal properties.

Which surface treatment is most cost-effective?
Barrel paint, simple sandblasting, or polishing offer low-cost options, while zinc plating provides higher durability and value.
