Why Hardness Testing Matters
Hardness determines a metal’s wear resistance, strength, and formability. Engineers rely on accurate metal hardness tests to guide material selection, process optimization, and quality control.
This guide covers the three most widely used hardness tests—Rockwell, Brinell, and Vickers—explaining how they work, their pros and cons, and which applications they suit best.

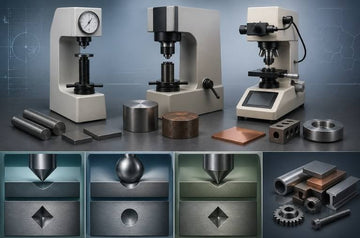

Comparing Rockwell, Brinell, and Vickers
| Method | Indenter | Measurement | Typical Materials | Key Advantage |
|---|---|---|---|---|
| Brinell | Hardened steel or tungsten carbide ball | Indentation diameter | Coarse-grained or rough metals, cast iron, aluminum | Macro-average hardness, tolerant of rough surfaces |
| Rockwell | Steel or tungsten ball, conical or diamond tip | Indentation depth | Hardened steel, alloys, soft metals, aluminum | Fast, low-cost, direct reading, suitable for high-volume QC |
| Vickers | Diamond pyramid | Diagonal length of indentation | Thin sheets, coatings, microstructure analysis | High precision, versatile, microhardness capability |
How Each Hardness Test Works
Brinell Hardness Test
-
Principle: Apply a known load (500–3,000 kgf) with a steel or carbide ball, measure indentation diameter, calculate HB.
-
Advantages: Large indentation averages material microstructure, insensitive to surface roughness.
-
Limitations: Slow, destructive, not for thin or fully hardened metals.
-
Applications: Cast iron, castings, forgings, coarse metals.
Rockwell Hardness Test
-
Principle: Apply a preliminary load, then a major load. The HR value comes from residual indentation depth. Common scales: HRC (hardened steel), HRB (soft steel, aluminum).
-
Advantages: Quick, simple, low cost, minimal indentation, direct reading.
-
Limitations: Accuracy affected by surface finish or deformation; not for microstructure analysis.
-
Applications: Finished parts, high-volume quality control, hardened alloys.
Vickers Hardness Test
-
Principle: Use a diamond pyramid indenter with loads from 1 gf to 100 kgf. Measure indentation diagonal to calculate HV.
-
Advantages: High precision, versatile, minimal indentation allows microhardness testing.
-
Limitations: Requires polished surface, slower, equipment is more expensive.
-
Applications: Thin sheets, coatings, carburized layers, microstructural evaluation.
Hardness Test Comparison
-
Speed: Rockwell > Brinell > Vickers
-
Precision: Vickers > Rockwell > Brinell
-
Cost: Rockwell < Brinell < Vickers
-
Destructiveness: Brinell > Rockwell > Vickers
-
Sample Prep: Rockwell (minimal) < Brinell (flat surface) < Vickers (polished surface)
Picking the Right Hardness Test
-
Material type:
-
Coarse or cast metals → Brinell
-
Hardened steel, titanium → Rockwell (HRC)
-
Soft metals, aluminum → Rockwell (HRB)
-
Thin sheets, coatings, microstructures → Vickers
-
-
Testing goal:
-
Fast, low-cost, batch QC → Rockwell
-
Microhardness or research → Vickers
-
Macro hardness overview → Brinell
-
-
Sample condition:
-
Rough or finished surfaces → Brinell or Rockwell
-
Minimal damage → Vickers
-
Hardness, Material Performance, and FAQs
Can hardness results from different tests be converted?
Approximate conversions exist following ASTM E140, but values are not fully equivalent due to differences in test methods. Use conversions only as an estimate.
Why are my readings inaccurate?
Inaccurate results often stem from uncalibrated equipment, uneven surfaces, wrong load, or worn indenters. Regular calibration with standard hardness blocks ensures reliability.
Does higher hardness mean higher strength or wear resistance?
Hardness generally correlates with tensile strength and wear resistance, but higher hardness can reduce toughness. Material selection should balance these properties.
Can finished parts be tested
Yes, finished components can be tested using Rockwell or portable Leeb testers. Avoid Brinell for delicate parts because its large indentations can cause damage.
What is microhardness testing?
Microhardness tests like Vickers or Knoop use low loads to measure thin layers, coatings, or microstructures accurately without damaging the material.
Tip: Hardness vs. Tensile Strength
For steels: Tensile Strength (MPa) ≈ 3.45 × Brinell Hardness (HB)

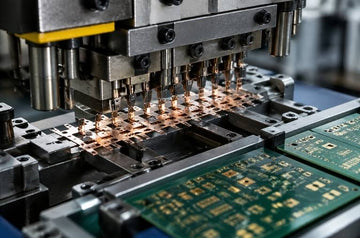

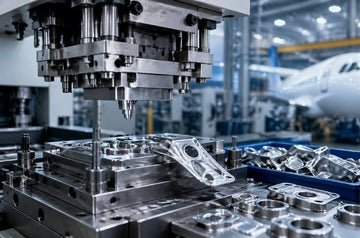

Ensuring Hardness in Stamped Parts
Precision stamping requires proper hardness to maintain bending resistance, elasticity, and insertion life,tqstamping applies full-process quality control and advanced measurement tools to verify parts meet specifications.
Automated production ensures consistent hardness and mechanical performance. Examples include Type-C and HDMI connectors, automotive terminals, and new energy components.
Visit tqstamping to explore solutions or customize components.
Summary and Next Steps
Correct hardness testing is essential: Brinell for macro evaluation, Rockwell for speed, Vickers for precision.
No single method is best for all cases—select based on material, application, and testing goals.
When choosing a testing method or manufacturing partner, prioritize quality control and hardness verification like TQ Stamping. Properly tested components ensure long-term reliability.
