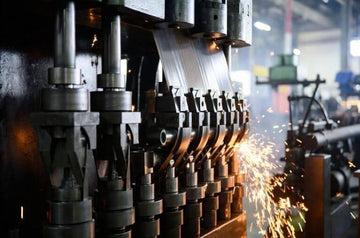

Progressive die stamping is a core metal stamping process used to produce high-volume precision metal parts. It enables manufacturers to form complex geometries with CONSISTENCY, EFFICIENCY, and tight tolerance control.
This process is widely used in automotive systems, electronic connectors, and industrial assemblies. It supports scalable production where dimensional stability and repeatability are critical.
What Is Progressive Die Stamping and How It Works
Progressive die stamping is a continuous manufacturing method where a metal strip moves through multiple stations within a single die.
Each station performs a specific action, including punching, bending, coining, and blanking. With each press stroke, the strip advances one step, and by the final station, a fully formed part is produced and separated.
This approach combines multiple operations into one cycle, making it ideal for high-volume production of precision components.
Step-by-Step Process of Progressive Die Stamping
Step 1 Tooling Design and Die Manufacturing
The process begins with tooling design. Engineers create a strip layout to define how the part will be formed across stations.
Key design priorities include material utilization, station sequencing, and feature positioning. Tooling is manufactured using CNC machining, Wire EDM, and heat treatment to ensure high tool durability and dimensional accuracy.
Manufacturers such as tqstamping maintain tooling precision within ±0.01 mm, supporting CONSISTENT part quality across large production volumes.
Step 2 Die Setup and Press Integration
The finished die is installed into a stamping press. Proper alignment between upper and lower die sections is critical.
During operation, the die opens as the press moves upward and closes during the downward stroke. Guide pins and bushings maintain alignment, ensuring RELIABLE forming conditions and repeatable results.
Step 3 Coil Feeding and Strip Positioning
A metal coil is fed into the die using a precision feeding system. The strip advances at a fixed pitch distance.
Feeding systems control movement precisely, while pilot pins correct positioning errors and stabilize alignment. This ensures dimensional consistency across all stations, even in long production runs.
Step 4 Continuous Stamping Operations
All stations operate simultaneously during each press cycle. Each stroke performs multiple actions such as piercing, bending, and forming.
The process repeats continuously through feed, stamp, release, and advance cycles. This synchronized workflow reduces cycle time and supports high-speed production with minimal variation between parts.
Step 5 Final Part Separation and Output
At the final station, the finished part is separated from the carrier strip. Scrap is removed automatically, and parts are ejected consistently.
The carrier strip maintains positioning until separation, ensuring accuracy throughout the process. Secondary operations such as deburring or surface finishing may follow to meet application requirements.
Key Components Inside a Progressive Die System
A progressive die system relies on several components to maintain precision and stability.
Die stations perform specific forming or cutting operations, while pilot pins ensure accurate strip alignment and reduce cumulative positioning errors. Stripper plates hold the material in place and release it from the punch after forming.
The feed mechanism controls strip movement, and guide pins with bushings maintain alignment between die components, ensuring CONSISTENT forming accuracy.
Key Factors That Affect Progressive Die Stamping Quality
Material selection directly affects forming performance, including hardness, thickness, and surface condition. Different materials require specific tooling strategies to maintain PROCESS STABILITY and tool life.
Efficient strip layout improves material utilization by reducing scrap and ensuring stable movement during production.
Precision is controlled through tooling accuracy, feeding stability, and press alignment. Manufacturers like tqstamping use precision measurement systems to maintain tight tolerances and repeatable quality.
Regular tool maintenance, including edge sharpening and component replacement, ensures long-term performance and RELIABLE production output.
Why Progressive Die Stamping Is Ideal for High-Volume Production
Progressive die stamping delivers measurable advantages in industrial manufacturing. Multiple operations occur in a single cycle, reducing cycle time per part and increasing output.
Parts are produced within a single die, ensuring uniform geometry and minimal variation between batches. High tooling cost is offset by reduced unit cost in large production volumes.
Optimized strip layouts reduce material waste, while automation minimizes manual handling. This is why progressive die stamping remains one of the most efficient solutions for mass production.
Common Parts Made Using Progressive Die Stamping
Progressive die stamping is widely used across multiple industries, including automotive, electronics, and industrial manufacturing.
Typical parts include brackets, clips, electrical terminals, and connector components. Precision parts such as Type-C, HDMI, and DP metal shells require tight dimensional control and high repeatability.
Progressive stamping ensures stable geometry across millions of parts. Manufacturers such as tqstamping produce these components using precision tooling and automated processes to maintain CONSISTENT quality in high-volume production.
When Should You Use Progressive Die Stamping
Choosing the right process depends on production requirements. Progressive die stamping is suitable for high production volumes, complex part geometries, and applications requiring tight tolerances and continuous production.
It is not ideal for low-volume production, very large or thick components, or designs that change frequently. In these cases, alternative methods such as transfer stamping or single-stage tooling may be more cost-effective.
FAQ
What thickness range is suitable for progressive die stamping
Progressive die stamping typically handles material thickness from 0.1 mm to 6 mm. The exact range depends on material type, mechanical properties, and tooling design. Thinner materials support higher-speed production, while thicker materials require stronger presses and more robust die structures to maintain precision and process stability.
What is the difference between progressive die and transfer stamping
In progressive die stamping, parts remain attached to the strip until the final stage, ensuring continuous positioning and alignment. In transfer stamping, parts are separated earlier and moved between stations. Progressive stamping is better for high-volume production, while transfer stamping suits larger or more complex components.
How long does a progressive die last
The lifespan of a progressive die depends on material type, production conditions, and maintenance practices. High-quality dies can operate for millions of cycles. Regular maintenance such as sharpening cutting edges and replacing wear components is essential to maintain CONSISTENCY and dimensional accuracy over long production runs.
How is part quality controlled in progressive stamping
Quality in progressive die stamping is controlled through precision tooling, stable feeding systems, and consistent press operation. Additional measures include in-process inspection, dimensional measurement, and material verification. These controls help maintain tight tolerances, reduce variation, and ensure reliable performance across high-volume production batches.
Why do stamped parts remain attached to a carrier strip
The carrier strip keeps parts aligned and stable as they move through multiple stations. It ensures accurate positioning during each operation and prevents misalignment. Only at the final station are parts separated, allowing the process to maintain REPEATABILITY and precise feature alignment throughout the entire stamping cycle.
What should you consider when choosing a progressive die stamping partner
When selecting a progressive die stamping partner, evaluate tooling capability, production capacity, and quality control systems. Look for experience in similar applications, precision equipment, and certifications such as ISO or IATF standards. A reliable partner ensures stable production, consistent tolerances, and long-term supply chain performance.
How to Choose the Right Progressive Die Stamping Partner
Selecting a qualified manufacturer is critical for achieving PRECISION, CONSISTENCY, and long-term production stability.
tqstamping integrates tooling design, stamping production, and quality control into a unified process. With advanced equipment from AMADA and TRUMPF and certifications including ISO 9001 and IATF 16949, tqstamping supports high-volume manufacturing with strict tolerance control.
Working with an experienced partner ensures reliable output, reduced production risk, and efficient scaling from prototype to mass production.
