Fine blanking and conventional blanking are both widely used sheet metal cutting processes, but they serve different manufacturing objectives. Conventional blanking is often selected for general-purpose stamped components where moderate tolerances and low production costs are sufficient. Fine blanking, also known as precision blanking, is designed for applications that require smooth shear surfaces, burr-free components, tight dimensional control, and highly consistent production quality.
For OEM manufacturers, the choice between fine blanking and conventional blanking affects more than part geometry. It influences assembly performance, secondary machining requirements, production efficiency, and long-term manufacturing costs. Understanding the engineering differences between these processes helps procurement teams and product engineers select the most effective solution for high-precision metal parts.

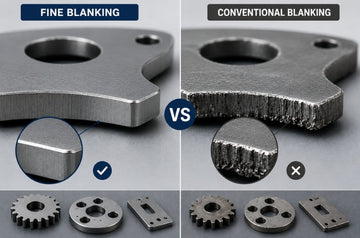

What Is the Difference Between Fine Blanking and Conventional Blanking?
The fundamental difference between fine blanking and conventional blanking is how the material separates during the cutting process.
Conventional blanking relies on shearing followed by controlled fracture. As the punch penetrates the sheet, material deformation increases until cracks initiate and propagate through the remaining thickness. This creates a cut edge containing rollover, burnished, fracture, and burr zones.
Fine blanking suppresses material fracture as much as possible. Through a combination of blanking force, blank holder force, and counter pressure, the material remains under compression throughout the cutting cycle. The result is a nearly full smooth shear surface with significantly improved edge quality, dimensional consistency, and flatness.
For many precision stamping applications, the edge produced by fine blanking can function directly in assembly without additional finishing operations.
How Fine Blanking Achieves Superior Edge Quality
The performance advantage of fine blanking originates from its unique tooling design and stress control mechanism.
The Role of V-Ring Pressure
A fine blanking die incorporates a V-ring indenter around the cutting contour. Before blanking begins, the V-ring penetrates the sheet surface and applies concentrated holding pressure.
This pressure restricts lateral material movement and helps create a compressive stress field around the cutting area. By controlling material flow, the V-ring improves sheared edge quality and reduces the likelihood of uncontrolled cracking.
Why Counter Pressure Matters
Unlike conventional blanking, fine blanking applies counter pressure beneath the workpiece during the entire cutting cycle.
Counter pressure supports the material directly below the punch, preventing distortion and minimizing edge tearing. The workpiece remains tightly constrained until the cut is fully completed.
This additional force is one of the primary reasons fine blanked parts achieve superior flatness and dimensional accuracy.
Triaxial Compressive Stress vs Conventional Shearing
Fine blanking creates a triaxial compressive stress state through the combined action of punch force, blank holder force, and counter pressure.
Under compression, the material undergoes continuous plastic deformation rather than sudden fracture. Conventional blanking, by contrast, generates localized tensile stresses that encourage crack propagation.
This difference explains why fine blanking produces smooth functional edges while conventional blanking often generates visible fracture zones and burrs.
Fine Blanking vs Conventional Blanking Tolerances
Tolerance capability is often the deciding factor when OEM manufacturers evaluate precision blanking processes.
Die Clearance Differences
Conventional blanking commonly uses die clearances ranging from approximately 5% to 10% of material thickness.
Fine blanking typically operates with extremely small clearances, often near 0.5% of material thickness.
The reduced clearance improves material control throughout the shearing process and contributes directly to tighter dimensional tolerances.
Dimensional Consistency in High-Volume Production
For automotive, electronics, and industrial hardware programs, dimensional repeatability is often more important than a single measurement result.
Fine blanking minimizes variation caused by fracture, burr formation, and edge distortion. This creates more stable production performance across large manufacturing volumes.
The result is improved assembly consistency and reduced risk of downstream quality issues.
Flatness and Perpendicularity Control
Many precision metal parts require excellent flatness and edge perpendicularity.
Because the material remains fully supported during fine blanking, deformation is significantly reduced. This makes fine blanking particularly suitable for components that rely on functional contact surfaces, precision positioning, or rotational movement.
Burr Formation and Surface Finish Comparison
Burr control remains one of the most common quality challenges in metal stamping production.
Why Conventional Blanking Creates Fracture Zones
As the punch penetrates the material in conventional blanking, stresses eventually exceed the material's fracture limit.
The resulting crack propagates rapidly through the remaining material thickness, producing a fracture zone and burr along the cut edge.
Tool wear can further increase burr height over time, often requiring secondary deburring operations.
Why Fine Blanking Produces Nearly Full Shear Surfaces
Fine blanking maintains plastic deformation throughout nearly the entire cutting process.
Because crack formation is suppressed, the cut edge contains a much larger burnished zone and a significantly smaller fracture zone. In many applications, smooth shear surfaces can extend through nearly the entire material thickness.
These burr-free components often provide functional edges suitable for direct assembly.
Impact on Secondary Machining
Improved edge quality can eliminate multiple downstream processes, including:
-
Deburring
-
Grinding
-
Surface finishing
-
Edge machining
-
Precision sizing
Reducing secondary operations improves production efficiency and lowers total manufacturing costs.
Cost Comparison: Is Fine Blanking Worth the Investment?
The higher tooling investment required for fine blanking often raises concerns during supplier selection.
However, evaluating only tooling cost can create an incomplete picture of overall manufacturing economics.
Tooling Cost
Fine blanking dies are more complex than conventional stamping tools because they incorporate V-ring systems, precision guidance mechanisms, blank holders, and counter pressure assemblies.
Initial tooling investment is therefore generally higher.
Production Cost Per Part
As production volume increases, the cost difference often narrows.
Fine blanking reduces rework, scrap, inspection effort, and secondary machining. These savings can significantly improve total cost efficiency in high-volume manufacturing programs.
Near-Net Shape Manufacturing Advantages
Fine blanking is often considered a near-net shape manufacturing process.
Complex geometries, functional contours, and precision features can frequently be produced directly from the press, minimizing additional machining requirements.
This advantage becomes particularly valuable when producing high-precision metal parts at scale.
Fine Blanking Design Guidelines for OEM Engineers
Part geometry plays an important role in determining whether a component is suitable for fine blanking.
Hole Diameter and Material Thickness
Fine blanking can produce relatively small holes compared with conventional blanking, but minimum hole sizes should still be evaluated relative to material thickness and material properties.
Extremely small features may require design modifications to maintain process stability.
Web Width and Edge Distance
Narrow bridges and thin web sections are achievable through precision blanking, but sufficient material must remain between features to maintain structural integrity during cutting.
Proper design helps reduce deformation and ensures stable production performance.
Corner Radius Considerations
Sharp internal corners can concentrate stress and increase tooling wear.
Appropriate corner radii improve material flow and contribute to longer tool life while maintaining dimensional consistency.
Early collaboration between product engineers and stamping manufacturers can often improve manufacturability while reducing overall production costs.
When Should OEM Manufacturers Choose Fine Blanking?
Fine blanking is generally the preferred solution when:
-
Tight tolerance components are required
-
Functional edges directly affect performance
-
Burr-free components are necessary
-
Secondary machining should be minimized
-
Assembly consistency is critical
-
Production volume supports tooling investment
Conventional blanking is often the better choice when:
-
Tolerance requirements are moderate
-
Edge quality is non-critical
-
Additional machining is already planned
-
Production volumes are relatively low
-
Initial tooling cost is the primary concern
Selecting the right process requires evaluating the entire manufacturing workflow rather than focusing solely on part production.
Typical Applications of Fine Blanking
Fine blanking is widely used in industries that demand precision, reliability, and scalable manufacturing.
Automotive Components
Automotive manufacturers frequently use fine blanking for:
-
Transmission plates
-
Brake system components
-
Seat recliner mechanisms
-
Door lock systems
-
Clutch components
-
Gear segments
These applications rely on functional edges, tight tolerances, and consistent performance.
Connector Terminals and Electronic Components
Electronic assemblies often require exceptional dimensional accuracy and edge quality.
Typical applications include:
-
Connector terminals
-
Battery contact components
-
EMI shielding components
-
Grounding contacts
-
Precision electronic hardware
In these applications, burr control is critical because edge defects can interfere with assembly or electrical performance.
Industrial Hardware and Mechanical Systems
Industrial manufacturers commonly use fine blanking for:
-
Precision gears
-
Locking mechanisms
-
Wear-resistant components
-
Mechanical drive systems
-
Motion control hardware
These products benefit from the process's ability to create highly repeatable functional surfaces.
Fine Blanking Material Considerations
Material selection directly affects the quality and stability of the fine blanking process.
Best Materials for Fine Blanking
Common materials include:
-
Low-carbon steel
-
Stainless steel
-
Copper alloys
-
Aluminum alloys
-
Selected alloy steels
These materials generally provide the ductility required to support plastic deformation throughout the cutting process.
Why Material Plasticity Matters
Fine blanking relies on the ability of the material to deform without cracking.
Materials with good plasticity, low deformation resistance, and uniform microstructures typically produce better smooth shear surfaces and more stable dimensional results.
Material condition, lubrication quality, and tooling setup all contribute to final part quality.
Why Work With an Experienced Fine Blanking Manufacturer?
Choosing between fine blanking and conventional blanking requires balancing precision requirements, tooling investment, production volume, material behavior, and downstream manufacturing costs.
An experienced precision stamping supplier can evaluate these factors and recommend the most efficient production strategy based on the functional requirements of the component rather than focusing solely on the cutting process itself.
At tqstamping, we support OEM manufacturers with precision metal stamping, progressive die stamping, fine blanking, connector terminal production, EMI shielding components, and scalable high-volume manufacturing solutions. By combining engineering expertise, tooling optimization, and strict tolerance control, we help customers achieve reliable production performance and long-term manufacturing consistency.
Conclusion
Fine blanking and conventional blanking each serve important roles in modern manufacturing. Conventional blanking remains a practical and cost-effective solution for many applications, while fine blanking provides superior edge quality, tighter tolerances, improved flatness, and exceptional dimensional consistency.
For OEM manufacturers producing high-precision metal parts, connector terminals, EMI shielding components, automotive hardware, or other functional components, fine blanking often delivers greater long-term value by reducing secondary processing, improving assembly performance, and supporting stable mass production. The most effective process is ultimately determined by the specific functional requirements, production volume, and total manufacturing objectives of the project.
FAQ
Is fine blanking more expensive than conventional blanking?
Tooling costs are generally higher, but reduced secondary machining, improved assembly efficiency, and lower scrap rates often improve total manufacturing economics.
What material thickness is suitable for fine blanking?
The suitable thickness range depends on material type, part geometry, and equipment capability. Fine blanking is commonly used for both thin precision components and thicker functional parts.
Does fine blanking eliminate deburring operations?
In many applications, yes. The process can significantly reduce or eliminate deburring requirements because of its superior edge quality.
Is fine blanking suitable for connector terminals?
Yes. Fine blanking is often used for connector terminals and precision electronic components that require burr control, dimensional consistency, and reliable assembly performance.
When does fine blanking become more economical than conventional blanking?
Fine blanking often becomes more cost-effective when production volumes are high and secondary operations such as deburring, grinding, or machining can be reduced or eliminated.
